Mohawk

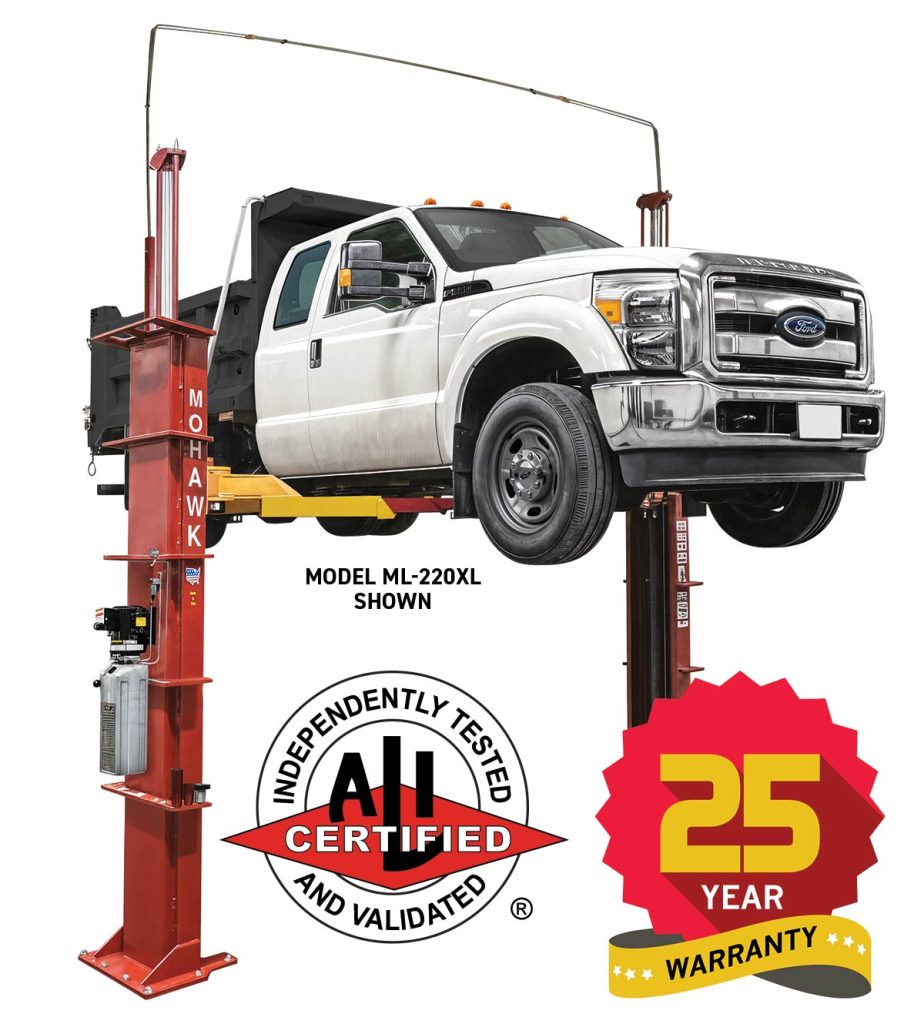

Mohawk ML-220XL Two-Post Lift
20,000 lb Two-Post Car and Truck Lift
20,000 LBS. CAPACITY
Contact for Pricing
Call For Availability
The Mohawk ML-220XL is engineered to handle the demands of modern service bays, combining robust lifting capacity with an elevated reach that accommodates larger light- and medium-duty vehicles. Built on the proven platform of the ML-220 , this XL version expands the envelope — giving technicians the strength and height needed for oversized pickups, fleet trucks, commercial vans , and other high-profile vehicles without sacrificing the smooth operation and durability shops depend on.
20,000 lbs.
Capacity
6' under arm
Rise Height
90 seconds at full load (faster with lighter load)
Full Rise
3 HP/208-230V, Single-phase (3ø optional)
Power
Overview
Mohawk lifts are engineered for long-term durability under the toughest shop conditions. Heavy-duty ¾-inch forklift-mast columns deliver unmatched rigidity, while 8 double-sealed steel roller bearings on each carriage ensure smooth, maintenance-free lifting with no plastic wear components.
Specifications
| Specification | ML-220XL Two-Post Lift |
|---|---|
| Lifting Capacity | 20,000 lbs. |
| Lifting Height | 6' under arm |
| Lifting Speed | 90 seconds at full load (faster with lighter load) |
| Overall Width (adjustable) | 12' 7 1⁄2" (adjustable) |
| Column Height | 10' |
| Width Between Posts | 9' 6" to 10' (adjustable) |
| Arm Pad Height | 5' 11⁄16" min. |
| Lift Pad Height @ Full Rise | 7' 2 ¼" |
| 3" Frame Adaptors (stackable) | 4 included as standard equipment |
| 6" Frame Adaptors (stackable) | 4 included as standard equipment |
| Synchronization | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Mechanical Safety Locks | Automatic; all position starting ground level |
| Hydraulic Safety Systems | Automatic; all position |
| Swing Arm Restraints | Automatic upon ascent |
| Cylinders | 2 (1 per column) |
| Drive System | #BL-848 leaf chain routed over cylinder |
| Thrust & Guide Bearings | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| Motor Rating | 3 HP/208-230V, Single-phase (3ø optional) |
| Overhead Hydraulic Line Height | 15’ Standard (adjustable to accommodate any height ceiling or routed in-floor) |
| Concrete Floor Requirements | 4000 psi (27579.02 kPa) mix 6 1⁄2" |
| Anchoring System (included) | (16) 3⁄4" x 6" bolts |
| Floor Access Between Posts | Clear and unobstructed |
| Weight | 4,100 lbs. |
| Warranty | 25 years structural, 10 year mechanical, plus limited lifetime cylinder seal warranty |
| Width Between Lifting Arms | 8' 9 3⁄4" (adjustable) |
| Wide Base | 5 1⁄2" of 4,000 psi concrete |
| Standard Base | 6 1⁄2" of 4,000 psi concrete |
| Spin-Up Adjustable Pad | 4 included as standard equipment |
Specifications published by the Mohawk factory and subject to change. Source: mohawklifts.com.
