Challenger

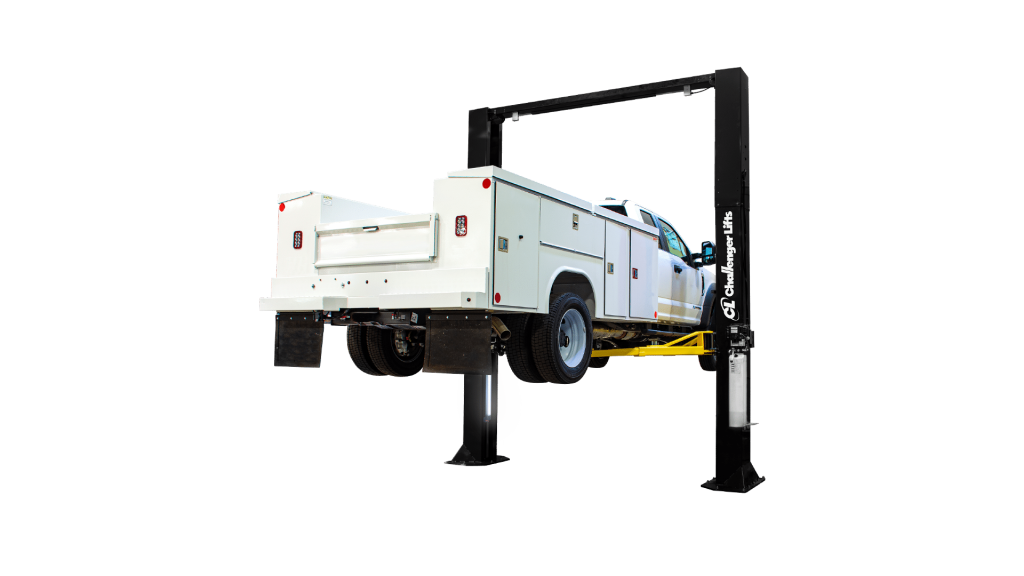

Challenger CL20 Two-Post Lift
20K Heavy-Duty Two-Post Adjustable Lift
20,000 LBS. CAPACITY
Contact for Pricing
Introducing our heavy-duty lifting solution, specifically engineered for vehicles weighing up to 20,000 lbs. Our lift is wider and taller, providing a robust and durable option for your fleet maintenance needs. The 2-Stage arms ensure stability during lifting, while the adjustable width makes it suitable for various vehicle sizes. The optional 2′ column extensions allow your shop to handle even taller vehicles.
20,000 lbs.
Capacity
Min. 76.6" Max. 84.6"
Rise Height
62s
Full Rise
3HP, 1Ph, 60Hz, 208/230v
Power
Overview
This versatile lift is essential for any fleet maintenance operation. With adjustable columns and superior strength, this lift is your ultimate lifting solution for heavy-duty vehicles.
Features
- 20,000 lbs. capacity
- 2-Stage Front & Rear arms
- Adjustable width from 12′ 10.75″ to 13′ 10.75″
- Adjustable columns allow for easy installation
- Optional 2′ Column Extensions available
Specifications
| Specification | CL20-0 |
|---|---|
| Lifting Capacity | 20,000 lbs. |
| Lift Configuration | Symmetric |
| Arm Configuration | 2-Stage Front/Rear |
| Rise Height (Maximum with Stack Adapters) | Min. 76.6" Max. 84.6" |
| Rise Time | 62s |
| Overall Width Options | 166.75", 160.75", 154.75" |
| Overall Height Options | 162", 168", 174" |
| Between Columns | 120", 126", 132" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" |
| Screw Pad Height | Min. 6.2" Max. 7.6" |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi |
| Floor to Overhead Switch | 155", 161", 167" |
| Min. Ceiling Height Required | 13'8", 14'2", 14'8" |
| Description | 20K Standard |
| Maximum Load Per Arm | 5,000 lbs. |
| Arm Reach | Min. 38.5" Max. 62" |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
