Challenger

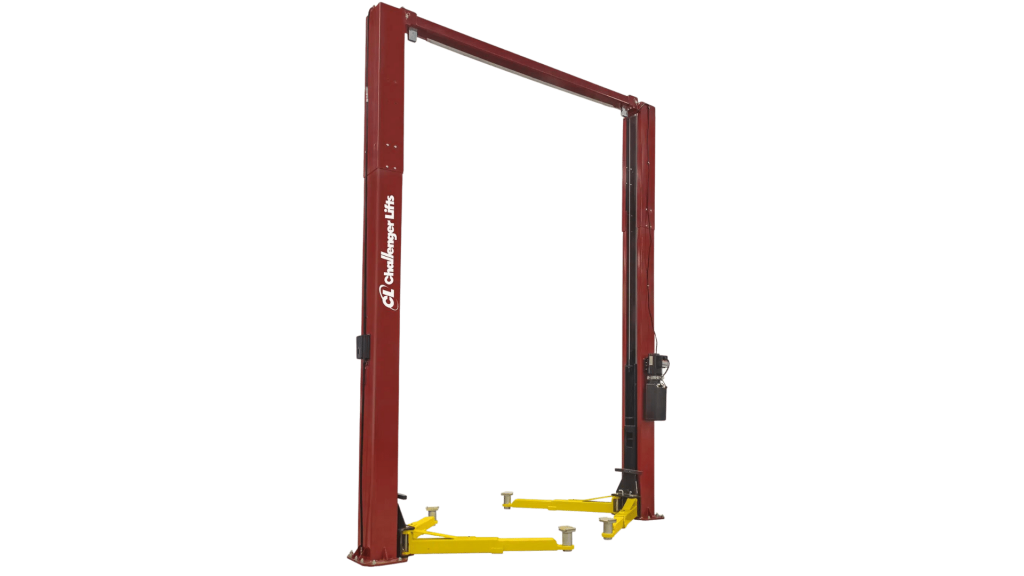

Challenger E15 Two-Post Lift
15K Heavy-Duty Two-Post Lift
15,000 LBS. CAPACITY
Contact for Pricing
This lower cost option doesn’t sacrifice the features you’ve come to expect. The jacketed single-point mechanical lock release system was once exclusive to our CL Series.
15,000 lbs.
Capacity
6' 5.75"
Rise Height
75 s
Full Rise
2HP, 208v – 230v
Power
Overview
15,000 lb. lift capacity Heavy-duty 2-stage arms enable heavy-duty symmetric lifting Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series Padded overhead shut off system prevents vehicle damage Powder coat finish provides long-lasting durability Plated arm restraints and arm pins…
Features
- 15,000 lb. lift capacity
- Heavy-duty 2-stage arms enable heavy-duty symmetric lifting
- Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
Specifications
| Specification | E15 |
|---|---|
| Lifting Capacity | 15,000 lbs. |
| Lifting Configuration | Symmetric |
| Arms | 2-stage front/2-stage rear |
| Rise Height | 6' 5.75" |
| Speed of Rise | 75 s |
| Overall Width | 12' 13" |
| Overall Height | 14' 6 / 16' 6' |
| Drive-Thru Clearance | 9' 1.375" |
| Screw Pad Height | 5.25”-6.75” |
| Motor / Voltage | 2HP, 208v – 230v |
| Floor to Overhead Switch | 13' 10" / 15' 10" |
| Ceiling Height Required | 14' 7" / 16' 7" |
| ALI/ETL Certified | Yes |
| Minimum Arm Reach | 36.5” |
| Maximum Arm Reach | 55” |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
