Challenger

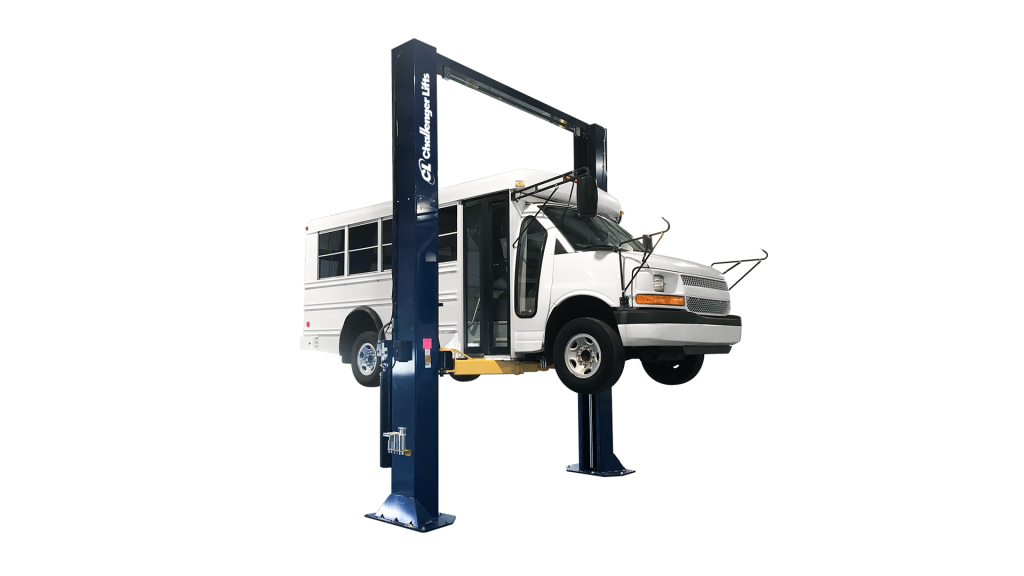

Challenger CL16 Two-Post Lift
16K Heavy-Duty Two-Post Adjustable Lift
16,000 LBS. CAPACITY
Contact for Pricing
Challenger's 16K Heavy-Duty Two-Post lift offers unparalleled flexibility and safety, making it the ultimate partner for all your automotive needs. With a capacity of 16,000 lbs. and featuring 3-stage arms, this lift can handle a variety of vehicles, from select standard cars, trucks, and SUVs to most Electric and commercial-fleet vehicles. It also features low-profile pickup pads, along with multiple height and width options.
16,000 lbs.
Capacity
Min. 75.5" Max. 81.5"
Rise Height
62s
Full Rise
3HP, 1Ph, 60Hz, 208/230v
Power
Overview
By investing in Challenger's Heavy-Duty Two-Post lifts, you're not just buying equipment but investing in your business. These lifts are built to last and will withstand even the most demanding fleet maintenance needs, saving you time and money in the long run. So why settle for anything less than the best? Choose Challenger's Heavy-Duty Two-Post lifts and experience the ultimate in performance and safety.
Features
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life
- 60” lifting carriage design increases lift life
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior
Specifications
| Specification | CL16-0-3S |
|---|---|
| Lifting Capacity | 16,000 lbs. |
| Lift Configuration | Symmetric |
| Arm Configuration | 3-Stage Front/Rear |
| Rise Height (Maximum with Stack Adapters) | Min. 75.5" Max. 81.5" |
| Rise Time | 62s |
| Overall Width Options | 166.75", 160.75", 154.75" |
| Overall Height Options | 162", 168", 174" |
| Between Columns | 120", 126", 132" |
| Drive-Thru Clearance | 104.25", 110.25", 116.25" |
| Screw Pad Height | Min. 5" Max. 6.5" |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi |
| Floor to Overhead Switch | 155", 161", 167" |
| Min. Ceiling Height Required | 13'8", 14'2", 14'8" |
| Description | 16K Standard |
| Maximum Load Per Arm | 4,000 lbs. |
| Arm Reach | Min. 36.625" Max. 75" |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
