QSP LM-350 Air-Operated Tire & Wheel Lift
Air-operated LiftMate for larger tire and wheel assemblies up to 350 lbs.
Contact for Pricing
Call For Availability

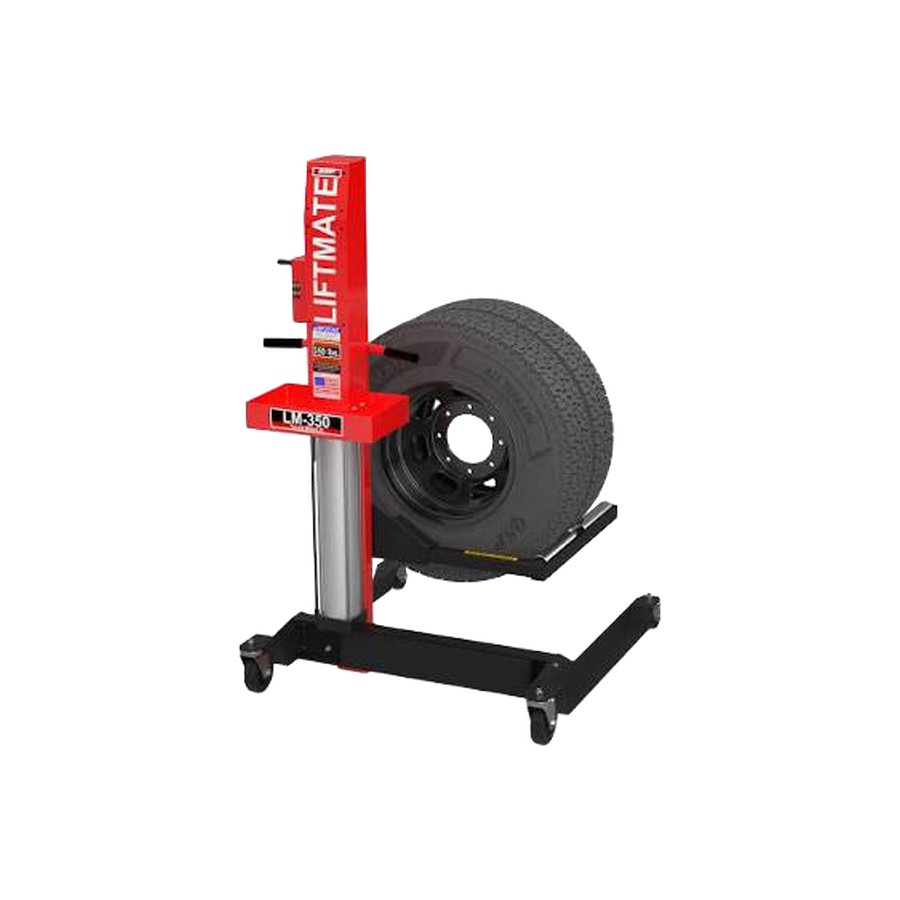

The LM-350 is the 350 lb. LiftMate — QSP’s air-operated mobile tire and wheel lift for assemblies too heavy for a 200 lb. unit.
350 lbs.
Capacity
42.1"
Lifting Stroke
Air-operated
Power
22.1"
Fork Opening
Overview
Wheel and tire assemblies of up to 350 lbs. can be difficult and dangerous for one person to mount and demount. The LM-350’s lifting fork carries four tire rollers and a face roller, and takes tires from 175/65R14 up to 48×12.5R16.5.
Like every LiftMate it uses QSP’s offset column for easy access to lug nuts and wheel service equipment, and it is made in the U.S.A.
Specifications
| Specification | LM-200 | LM-200-R2 | LM-350 | LM-500 |
|---|---|---|---|---|
| Lifting Capacity | 200 lbs. | 200 lbs. | 350 lbs. | 500 lbs. |
| Power | Air-operated | 24V battery (two 12V) | Air-operated | Air-operated |
| Lifting Stroke | 39.5" | 40.3" | 42.1" | 40" |
| Minimum Floor Clearance | 0.75" | 0.75" | 0.75" | 0.75" |
| Fork Opening | 18.1" | 18.1" | 22.1" | 21.5" |
| Face Rollers | 1 | 1 | 1 | 4 |
| Overall Width | 31.2" | 31.2" | 38.1" | 42" |
| Overall Depth | 29" | 32.4" | 47" | 47" |
| Smallest Tire | 185/60R13 | 185/60R13 | 175/65R14 | 135/90R15 |
| Largest Tire | 315/70R18 | 315/70R18 | 48×12.5R16.5 | 40×15.5R28 |
| Made in U.S.A. | Yes | Yes | Yes | Yes |
All four LiftMate models are shown so you can compare them side by side. Specifications from QSP’s published LiftMate drawings and literature, subject to change. Source: qsponline.com.
