QSP LM-200 Air-Operated Tire & Wheel Lift
Air-operated LiftMate for tire and wheel assemblies up to 200 lbs.
WHEEL LIFTS
QSP

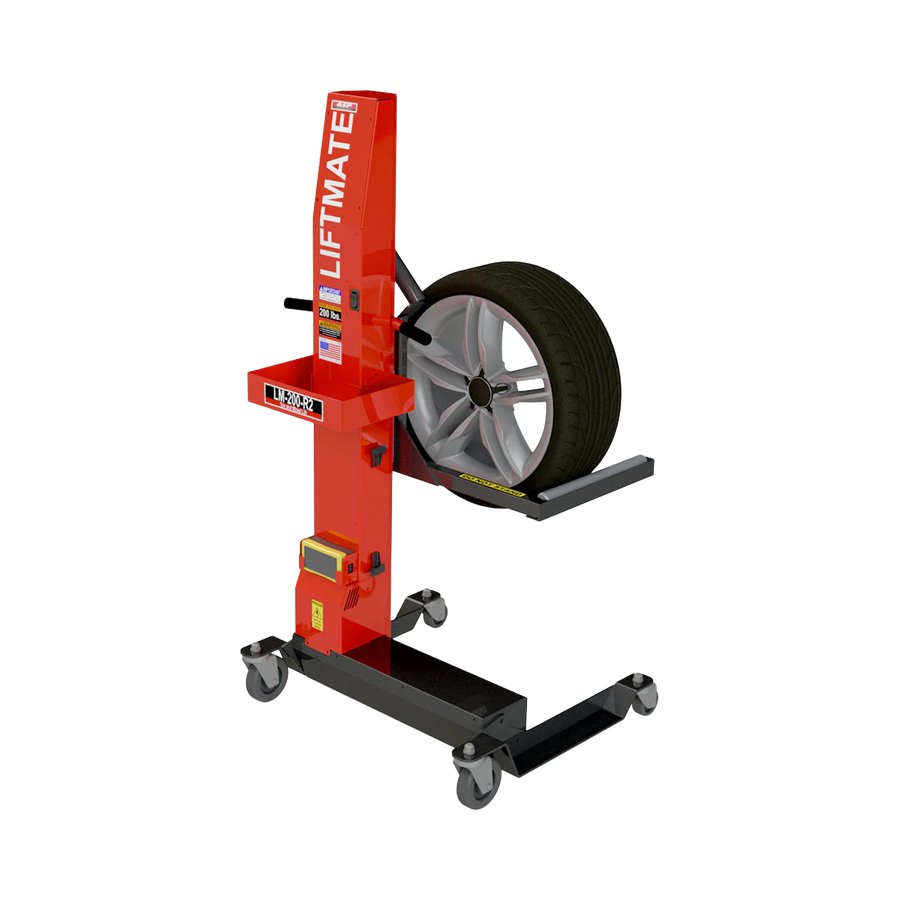

QSP LM-200-R2 Rechargeable Tire & Wheel Lift
Battery-powered LiftMate for tire and wheel assemblies up to 200 lbs. No air line needed.
Contact for Pricing
Call For Availability
Heavy lifting accounts for 20% of all workplace injuries. The tire and wheel assembly for some passenger cars, SUVs and trucks can weigh as much as 160 pounds, making it very difficult for one person to comfortably and safely lift and set in place.
200 lbs.
Capacity
40.3"
Lifting Stroke
24V battery (two 12V)
Power
18.1"
Fork Opening
Overview
This rechargeable mobile unit is powered by two 12V batteries wired in series resulting in a powerful 24V output. The LM-200-R2 is a powerful lift that will be a workhorse for many years.
Includes a Battery Charge Indicator and Battery Charger that will shut down when the battery is fully charged.
Features
- Lifts up to 200 lb. tire/wheel assemblies
- 24V battery and charging system included
- Steel tire rollers for easy lug nut alignment
- Offset design allows easy access to lug nuts
- Easily transport tire assembly to balancer or tire changer
- Rotating casters (two locking) make it easy to maneuver
- Foot lever brake ensures you are locked in place
Specifications
| Specification | LM-200 | LM-200-R2 | LM-350 | LM-500 |
|---|---|---|---|---|
| Lifting Capacity | 200 lbs. | 200 lbs. | 350 lbs. | 500 lbs. |
| Power | Air-operated | 24V battery (two 12V) | Air-operated | Air-operated |
| Lifting Stroke | 39.5" | 40.3" | 42.1" | 40" |
| Minimum Floor Clearance | 0.75" | 0.75" | 0.75" | 0.75" |
| Fork Opening | 18.1" | 18.1" | 22.1" | 21.5" |
| Face Rollers | 1 | 1 | 1 | 4 |
| Overall Width | 31.2" | 31.2" | 38.1" | 42" |
| Overall Depth | 29" | 32.4" | 47" | 47" |
| Smallest Tire | 185/60R13 | 185/60R13 | 175/65R14 | 135/90R15 |
| Largest Tire | 315/70R18 | 315/70R18 | 48×12.5R16.5 | 40×15.5R28 |
| Made in U.S.A. | Yes | Yes | Yes | Yes |
All four LiftMate models are shown so you can compare them side by side. Specifications from QSP’s published LiftMate drawings and literature, subject to change. Source: qsponline.com.
