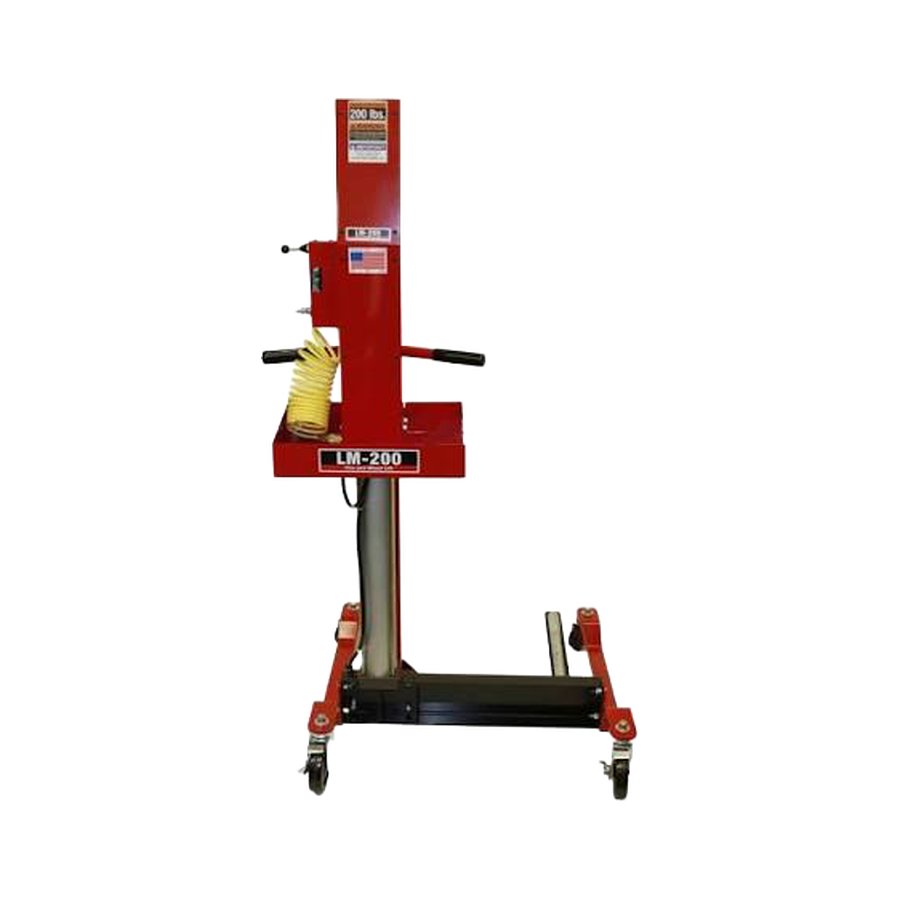

QSP LM-200 Air-Operated Tire & Wheel Lift
Air-operated LiftMate for tire and wheel assemblies up to 200 lbs.
Contact for Pricing
Call For Availability
Tire and wheel assemblies are heavy. This can make mounting and demounting difficult and dangerous for one person. Heavy lifting accounts for 20% of all workplace injuries. The QSP air powered mobile tire lift assists technicians by making everyday tasks much easier.
200 lbs.
Capacity
39.5"
Lifting Stroke
Air-operated
Power
18.1"
Fork Opening
Overview
The 200lb capacity LM-200 is a powerful tool that can reduce injuries and will be a workhorse in your shop. Designed with an off center column for better access to lug nuts, balancers and changers. The LM-200 is made in the U.S.A.
Features
- Lifts tire and wheel assemblies of up to 200 lbs
- Four swivel high capacity casters, two with brakes
- Rolls from vehicle to tire changer or balancer
- Rise height at rollers 41"
- Tool tray with air tool fitting
- Steel rollers to spin wheel for lug nut alignment
- Raises to full height in 7 seconds
- Air operated, always ready to go
- Greatly reduces exposure to employee back and shoulder injury
Specifications
| Specification | LM-200 | LM-200-R2 | LM-350 | LM-500 |
|---|---|---|---|---|
| Lifting Capacity | 200 lbs. | 200 lbs. | 350 lbs. | 500 lbs. |
| Power | Air-operated | 24V battery (two 12V) | Air-operated | Air-operated |
| Lifting Stroke | 39.5" | 40.3" | 42.1" | 40" |
| Minimum Floor Clearance | 0.75" | 0.75" | 0.75" | 0.75" |
| Fork Opening | 18.1" | 18.1" | 22.1" | 21.5" |
| Face Rollers | 1 | 1 | 1 | 4 |
| Overall Width | 31.2" | 31.2" | 38.1" | 42" |
| Overall Depth | 29" | 32.4" | 47" | 47" |
| Smallest Tire | 185/60R13 | 185/60R13 | 175/65R14 | 135/90R15 |
| Largest Tire | 315/70R18 | 315/70R18 | 48×12.5R16.5 | 40×15.5R28 |
| Made in U.S.A. | Yes | Yes | Yes | Yes |
All four LiftMate models are shown so you can compare them side by side. Specifications from QSP’s published LiftMate drawings and literature, subject to change. Source: qsponline.com.
