Challenger

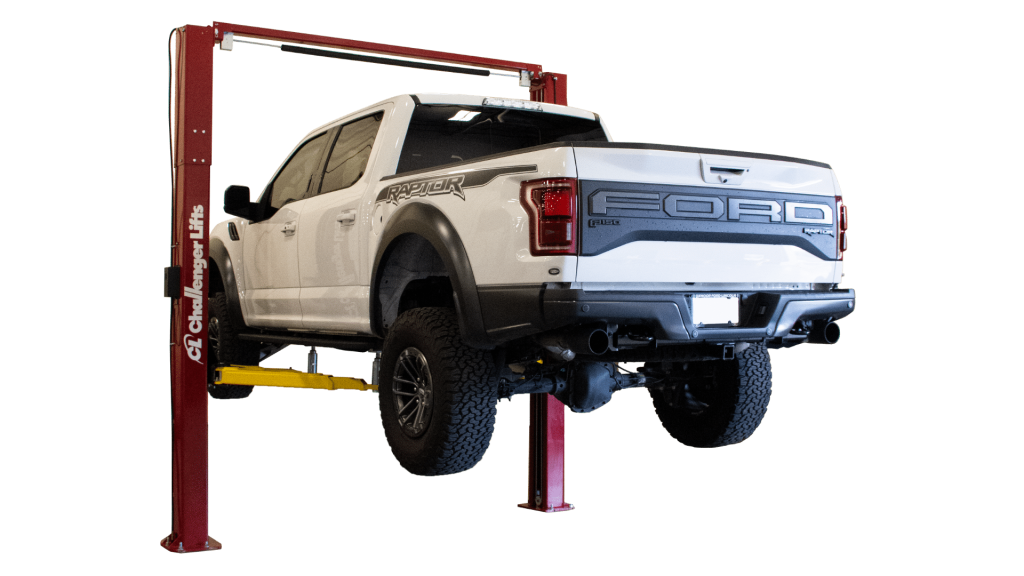

Challenger VLE10 Versymmetric Two-Post Lift
10K Versymmetric® VLE Two-Post Lift
10,000 LBS CAPACITY
Contact for Pricing
Challenger adds the industry leading Versymmetric ® Technology to the popular economy grade 10,000 lb 2-post lift, the LE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles, from small passenger cars to SUV’s and pick-up trucks within rated capacity.
10,000 lbs
Capacity
74.75"
Rise Height
44s
Full Rise
2HP, 208v-230v, 60Hz, 1Ph
Power
Overview
Lifting Capacity 10,000 lbs Lift Configuration Symmetric and Asymmetric Arm Configuration 3-Stage Versymmetric® Front/2-Stage Rear Max Load Per Arm 2500 lbs Rise Height (screw pads at highest position) 74.75" Overall Height Standard: 143.875" Extended Height: 167.875" Overall Width 131.625" Drive-Thru Clearance 98.375" Floor to Overhead Switch Standard: 137" Extended Height: 161" Front Arm Reach 22.3125"-39.375" Rear Arm Reach 38.375"-55.375" Screw Pad…
Features
- 3-Stage Versymmetric ® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay
- 11.875” standard height fits in service bays with 12’ ceiling height
- Double telescoping screw pads with rubber foot pad
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10
- Premium powder coat finish provides long-lasting durability
Specifications
| Specification | VLE10 Versymmetric Two-Post Lift |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lift Configuration | Symmetric and Asymmetric |
| Arm Configuration | 3-Stage Versymmetric® Front/2-Stage Rear |
| Rise Height (screw pads at highest position) | 74.75" |
| Rise Time | 44s |
| Overall Width | 131.625" |
| Overall Height | Standard: 143.875" Extended Height: 167.875" |
| Between Columns | 110.25" |
| Drive-Thru Clearance | 98.375" |
| Screw Pad Height | 4.25"-6.75" |
| Motor/Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Floor to Overhead Switch | Standard: 137" Extended Height: 161" |
| Ceiling Height Required | Standard: 12' Extended Height 14' |
| Max Load Per Arm | 2500 lbs |
| Front Arm Reach | 22.3125"-39.375" |
| Rear Arm Reach | 38.375"-55.375" |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
