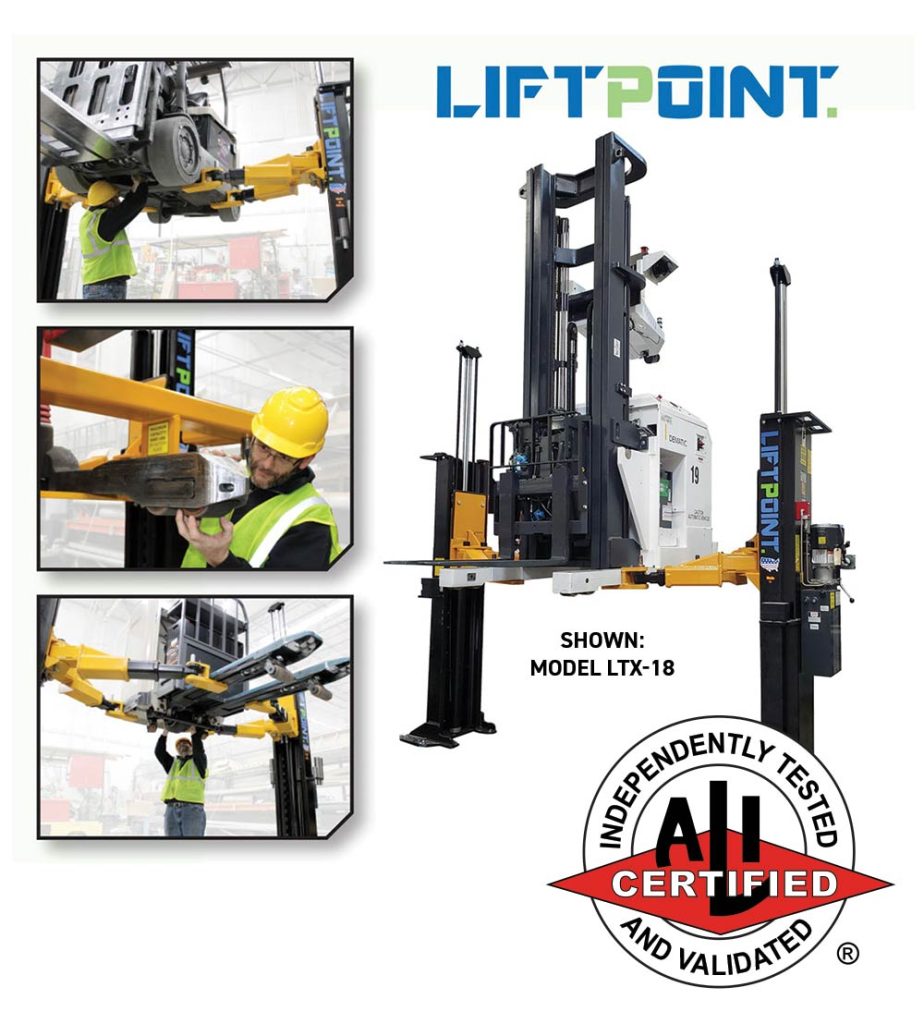

Mohawk LTX-18 / LTX-22 Forktruck Lift
LiftPoint Forktruck Lift
18,000/22,000 LBS. CAPACITY
Contact for Pricing
Call For Availability
The only lift designed to service forklifts, pallet jacks, reach trucks, order pickers & more
18,000/22,000 lbs.
Capacity
6' under arm
Rise Height
60 seconds (faster with lighter load)
Full Rise
4 HP/208-230V, Single-phase (3ø optional)
Power
Overview
LiftPoint columns are built from ¾”-thick forklift mast steel , delivering exceptional strength, durability, and long-term reliability. Each carriage rides on eight double-sealed, self-lubricating steel ball bearing rollers, ensuring smooth, consistent movement with minimal wear. Powering the lift are two heavy-duty 4” hydraulic cylinders —one in each post— providing a stable, balanced lift even under demanding loads.
Specifications
| Specification | LTX-18 / LTX-22 Forktruck Lift |
|---|---|
| Lifting Capacity | 18,000/22,000 lbs. |
| Lifting Height | 6' under arm |
| Lifting Speed | 60 seconds (faster with lighter load) |
| Overall Width (adjustable) | 12' 7 1⁄2" |
| Arm Pad Height | 1 1⁄4" min. |
| Synchronization | Hydraulic fluid displacement using no chains, cables, or overhead obstructions |
| Mechanical Safety Locks | Automatic; multi-position starting @ 5" off the floor |
| Hydraulic Safety Systems | Automatic; infinite-position |
| Swing Arm Restraints | Automatic upon ascent |
| Cylinders | 2 (1 per column) |
| Drive System | Direct drive (using no cables or chains) |
| Thrust & Guide Bearings | (16) 4" diameter, (8 per carriage) double sealed, self-lubricating ball bearing rollers |
| Motor Rating | 4 HP/208-230V, Single-phase (3ø optional) |
| Concrete Floor Requirements | Wide Base: 5 1⁄2" of 4,000 psi concrete Standard Base: 6 1⁄2" of 4,000 psi concrete |
| Anchoring System (included) | (16) 3⁄4"x6" bolts |
| Floor Access Between Posts | Clear and unobstructed |
| Weight | 3,200 – 3,800 lbs. |
| Warranty | 25 years structural |
| Standard Base | 6 1⁄2" of 4,000 psi concrete |
Specifications published by the Mohawk factory and subject to change. Source: mohawklifts.com.
