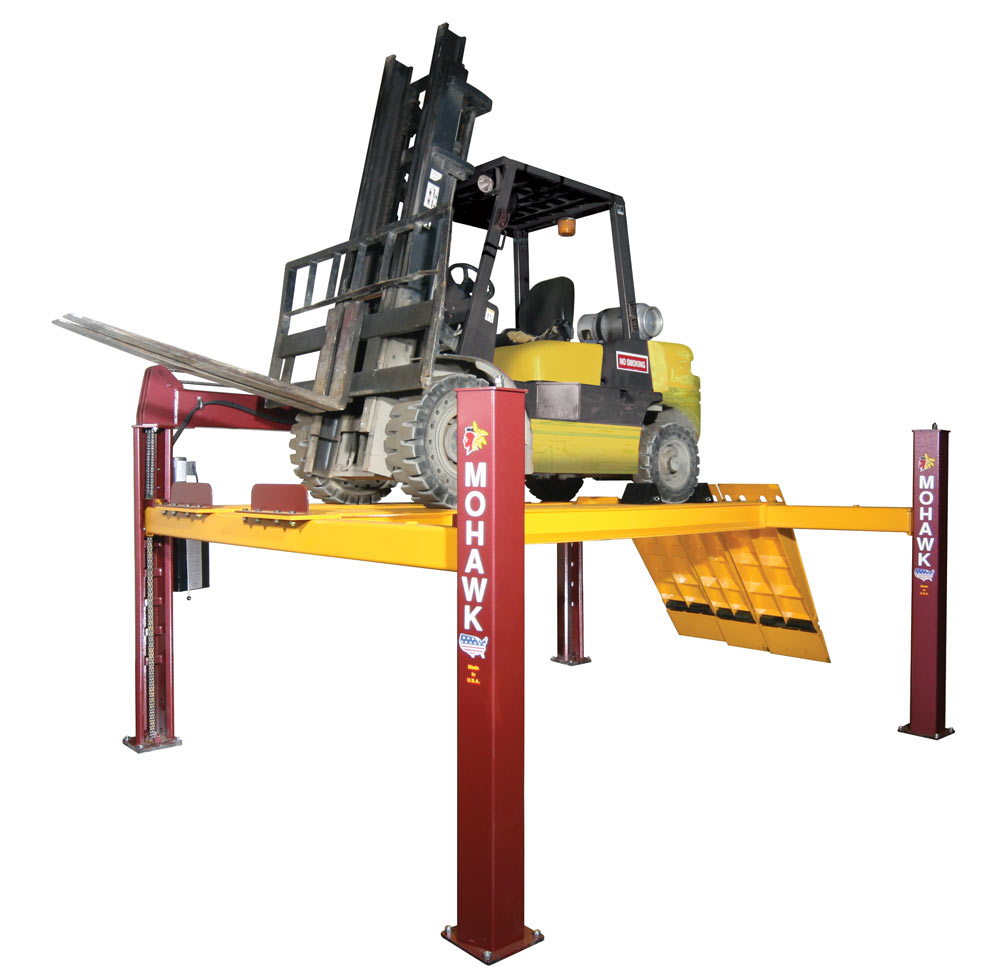

Mohawk FL-25 Drive-On Forktruck Lift
Drive-On Forktruck Lift
25,000 LBS CAPACITY
Contact for Pricing
Call For Availability
The Mohawk FL-25 delivers 25,000 pounds of lifting capacity and a full six-foot rise for complete undercarriage access during forklift service and maintenance. This surface-mounted lift bolts directly to your shop’s concrete floor and can be installed in just a few hours. Adjustable runways easily accommodate forklifts of any wheelbase or length , making the FL-25 a versatile solution for facilities that service a wide range of industrial trucks.
25,000 lbs
Capacity
2 HP/220 V Single-Phase (3 phase optional)
Power
Overview
The FL-25 delivers a full 25,000-pound capacity in a compact, above-ground design—no pits or in-ground cylinders required. Installation is fast and straightforward, and the open layout provides complete undercarriage access with a lifting height of more than 5 feet 9 inches. Adjustable 24-inch runways easily accommodate forklifts of every size, and custom configurations are available for unique industrial requirements.
Specifications
| Specification | FL-25 Drive-On Forktruck Lift |
|---|---|
| Lifting Capacity | 25,000 lbs |
| Overall Length | 20'-3 1/16" |
| Overall Width | 12'-6 3/16" |
| Clearance Between Posts | 11' Standard (Wider Available) |
| Mechanical Safety Release | Single Point |
| Mechanical Safety Locks | Multi-Positions |
| Back-Up Hydraulic Safety Systems | Pressure Compensated Flow Controls & Velocity Fuses |
| Motor Rating | 2 HP/220 V Single-Phase (3 phase optional) |
| Concrete requirements | 4,000 PSI concrete 4 ½" thick floor |
| Lift Weight | 4,200 lbs |
| Warranty | 3 years; (Excluding Motor/Pump) |
| Lifting Mechanism | 5" Hydraulic Cylinder Attached to (4) #646 Leaf Chains |
| Track Length | 20' |
| Lifting Stroke | 5' |
| Height @ Full Stroke | 5'-9 5/16" (top of runways) |
| Track Width | 24" |
| Track Adjustment | 4' to 8' |
Specifications published by the Mohawk factory and subject to change. Source: mohawklifts.com.
