Challenger EW1020 Wide Inground Lift
10K Wide Inground Lift
10,000 LBS. CAPACITY
Contact for Pricing

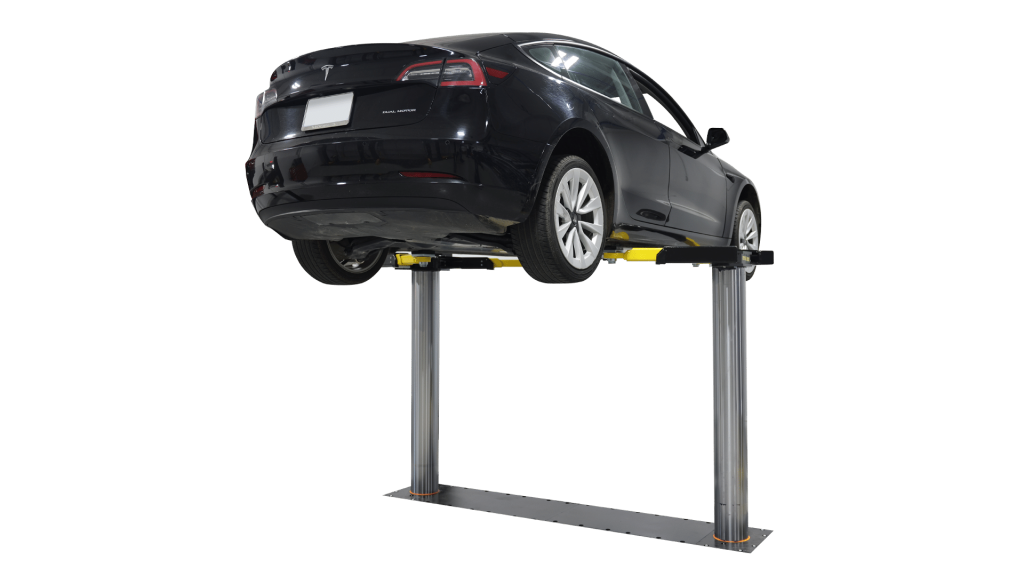

Introducing the EW10, our 10,000 lbs. hydraulic, inground lift revolutionizing the automotive service industry. Designed to cater to service centers' evolving needs, the EW10 offers an extra-wide drive-through clearance, which allows the lowering of batteries out of electric vehicles while not losing the function of a conventional inground cassette, making it an indispensable tool for service centers specializing in EV maintenance.
10,000 lbs.
Capacity
78”
Rise Height
41 s
Full Rise
2HP, 208v-230v, 60Hz, 1Ph
Power
Overview
The lift's 3-stage arms and double-telescoping screw pads ensure precise positioning while spotting vehicles. The EW10 is ideally suited for some of the widest cars currently on the market, such as modern Electric Vehicles and Luxury cars with specific pick-up points. This versatility makes it ideal for service centers looking to expand their capabilities and cater to a diverse and evolving automotive market.
Specifications
| Specification | EW1020 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Capacity per Arm | 2,500 lbs. |
| Arms | 3-stage front/3-stage rear |
| Stroke | 72” |
| Rise Height | 78” |
| Speed of Rise | 41 s |
| Overall Width | 118" |
| Drive-Thru Clearance | 88” |
| Screw Pad Height | 4” – 6.125” |
| Air Required | 90 – 120 psi |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Super Structure Colors | Black, Red or Blue |
| ALI/ETL Certified | Yes |
| Arm Reach | 20" – 42" |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
