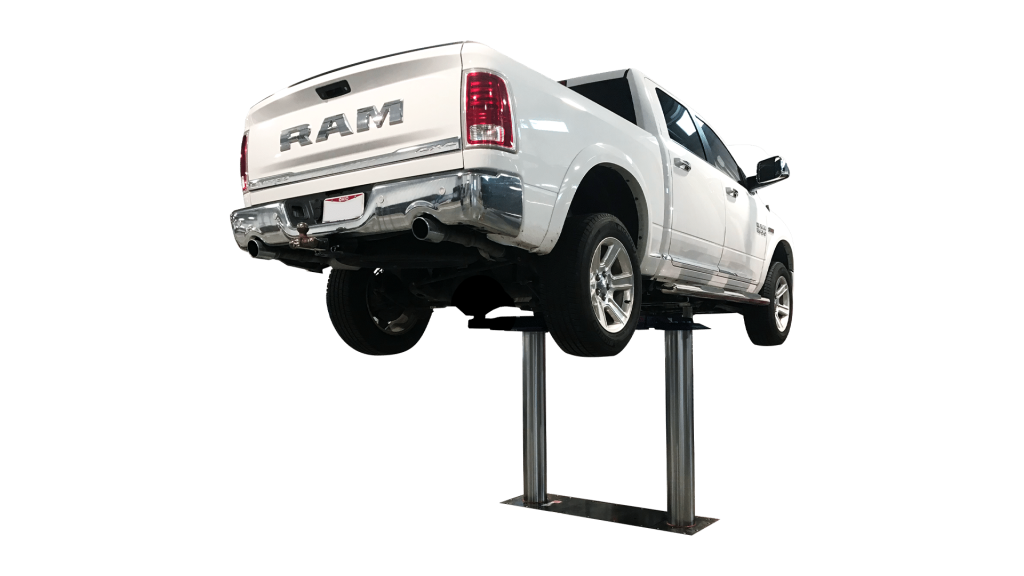

Challenger EV1220 Heavy-Duty Inground Lift
12K Heavy-Duty Inground Lift
12,000 LBS. CAPACITY
Contact for Pricing
Challenger's electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We've also added our time-tested productivity tools, including Quick Cycle Technology and Bench Mount Controls to boost your efficiency.
12,000 lbs.
Capacity
78”
Rise Height
60 s
Full Rise
2HP, 208v-230v, 60Hz, 1Ph
Power
Features
- 12,000 lb. lift capacity
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks within the service bay, maximizing revenue potential
- Long bearing contact provides increased stability
Specifications
| Specification | EV1220 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Lifting Capacity | 3,000 lbs. per arm |
| Arms | 3-stage front/3-stage rear |
| Stroke | 72” |
| Rise Height | 78” |
| Speed of Rise | 60 s |
| Overall Width | 115” |
| Drive-Thru Clearance | 87” |
| Screw Pad Height | 5” – 6.75” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Air Required | 90 – 120 psi |
| ALI/ETL Certified | Yes |
| Super Structure Colors | Red, Blue, Black |
| Reach (Arm Minimum) | 19.625” |
| Reach (Arm Maximum) | 48” |
| Guide Plunger Diam. | 8.5” |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
