Challenger

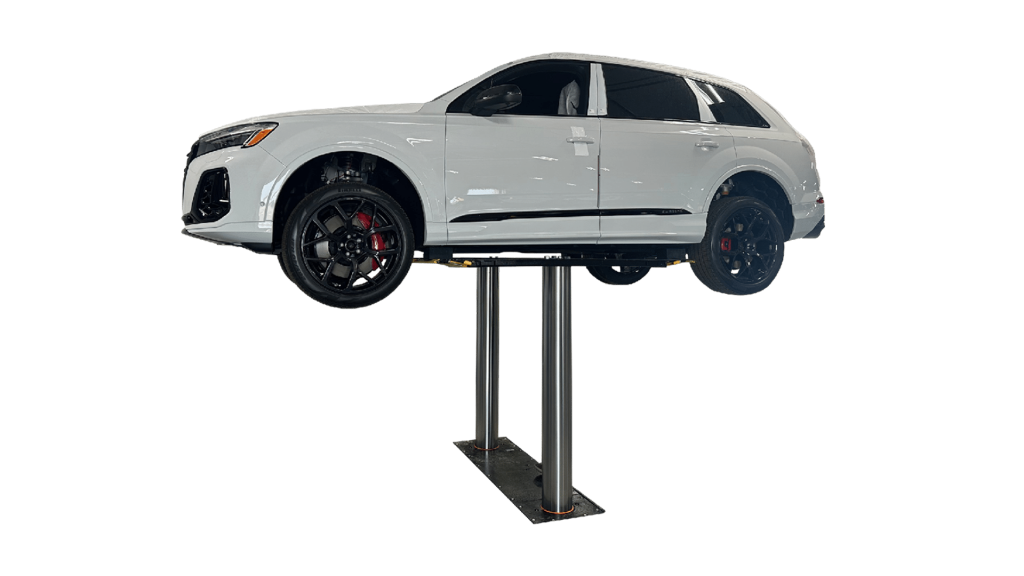

Challenger EV1020XP9 Inground Drive-On Pad Lift
9K Inground Drive-On Pad Lift
9,000 LBS. CAPACITY
Contact for Pricing
Challenger's 9,000-lb. drive-on-style pad aids in quick vehicle spotting in express bays. This add-on configuration provides the quickest vehicle loading, reducing frustration in shops.
Features
- Long bearing contact provides increased stability
- Mechanical lock engages every 3″, allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- QuickCycle™ models reduce vehicle travel time by 30 percent
- Premium powder coat finish on bolsters provides long-lasting durability
Specifications
| Specification | EV1020XP9 |
|---|---|
| Lifting Capacity | 9,000 lbs. |
| Arms | n/a |
| Stroke | 68” |
| Rise Height | 70” |
| Width Overall | 79.75” |
| Drive-Thru Clearance | – |
| Reach (Arm Minimum) | – |
| Reach (Arm Maximum) | – |
| Screw Pad Height | Minimum Pad Height: 2.25" |
| Capacity | 4,500 lb. per pad |
| Guide Plunger Diam. | 8.5” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38 s |
| Air Required | 90 – 120 psi |
| ALI/ETL Certified | Yes |
| Super Structure Colors | Black |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
