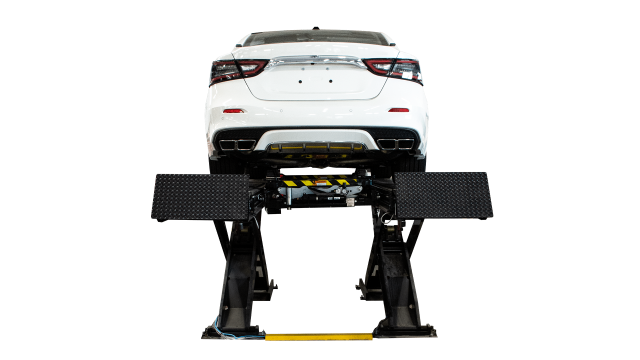

Challenger SX14 Heavy-Duty Scissor Alignment Lift
14K Heavy-Duty Scissor Alignment Lift
14,000 LBS. CAPACITY
Challenger

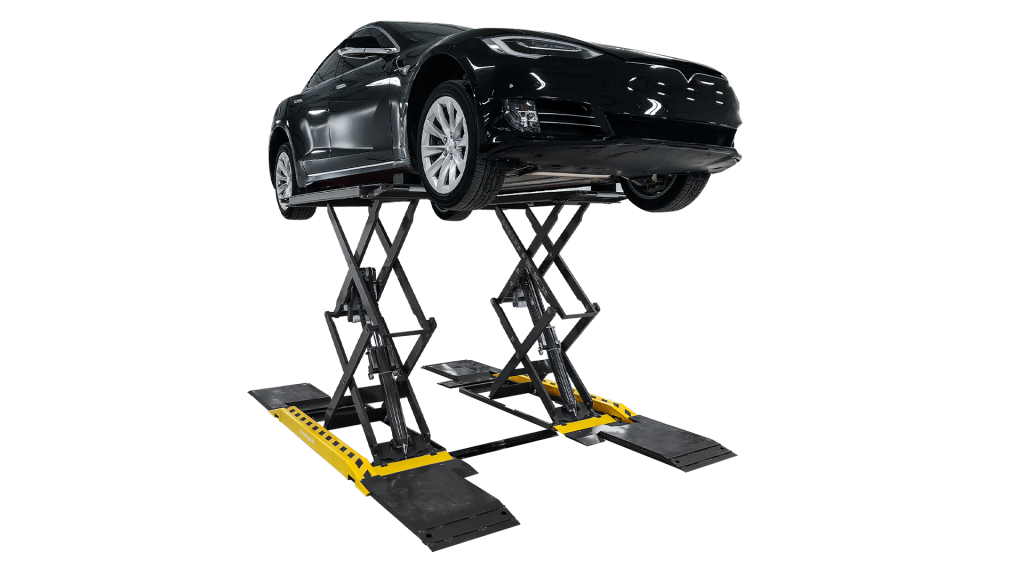

Challenger DX77 Scissor Lift
7.7K Scissor Lift
7,700 LBS. CAPACITY
Contact for Pricing
Looking for a scissor lift that can easily handle many makes and models while ensuring maximum productivity and safety? Look no further than the DX77. With a robust 7,700 lbs. capacity and a synchronized hydraulic system, this lift can handle many vehicles without compromising performance.
7,700 lbs.
Capacity
74.5”
Rise Height
43 s
Full Rise
2HP, Single Phase, 60Hz
Power
Overview
But that’s not all. The DX77’s cross-member-free design ensures a clutter-free workspace for technicians while providing unrestricted access all around the lifted vehicle. This efficient design is what you are looking for if your goal is to increase efficiency and minimize potential hazards.
Features
- 7,700 lb. lifting capacity
- 74.5” rise height (70″ if flush mounted)
- Double scissor lifting for taller rise allows more overall working clearance
- Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
- 3” rubber spotting blocks (set of 4) and 1.5” rubber spotting blocks (set of 4) included
- Extended ramp kit available for low profile vehicles
Specifications
| Specification | DX77 |
|---|---|
| Lifting Capacity | 7,700 lbs. |
| Rise Height | 74.5” |
| Lowered Height | 4.5” |
| Rise Time | 43 s |
| Overall Length | 83.25” |
| Overall Width | 82” |
| Ramp Length | 11.75” |
| Motor | 2HP, Single Phase, 60Hz |
| Voltage | 208/220v |
| Air Supply Required | 90 – 120 psi |
| Installation | Standard |
| Platform Length | 59” |
| Platform Width | 24.5” |
| Width Between Platforms | 21 – 27” |
| Max Load per Platform | 3,850 lbs. |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
