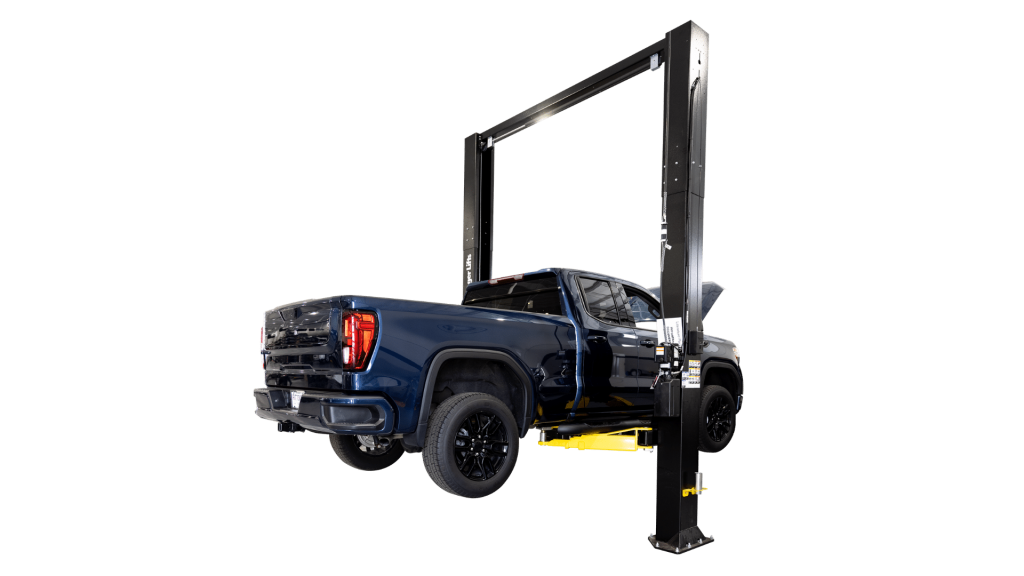

Challenger CL12A Two-Post Lift
12K Heavy-Duty Two-Post Adjustable Lift
12,000 LBS. CAPACITY
Contact for Pricing
Experience the future of automotive lifting with our revolutionary 12K Two-Post lift, the CL12A. Our latest innovation isn't just another lift; it's a versatile, adaptable, and powerful addition to your workshop that will transform how you approach vehicle maintenance.
12,000 lbs.
Capacity
84.75"
Rise Height
63s
Full Rise
2HP, 208v-230v, 60Hz, 1Ph
Power
Overview
Why choose the CL12A? Flexibility is at the heart of our design. Our lift features multiple height and width adjustments, empowering you with many installation options to fit your shop's unique layout and requirements perfectly.
Features
- Contact Your Rep Manuals CL12A
- 3-Stage Front & Rear arms
- Adjustable width from 11′ 10″ to 12′ 10″
- Designed to service electric and other wider vehicles when combined with TFPK footpad kit
- 1′ and 2′ Column Extensions available
- Low-Ceiling model available with column height of 11′ 11″
Specifications
| Specification | CL12A |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Lifting Configuration | Symmetric |
| Arms | 3-stage front/3-stage rear |
| Rise Height | 84.75" |
| Speed of Rise (approximate) | 63s |
| Adjustable Width Overall | 142" / 148" / 154" |
| Overall Height | 13' 2" or 13' 8" |
| Inside Columns | 114.5" / 120.5" / 126.5" |
| Drive-Thru Clearance | 103.5”, 109.5" or 115.5" |
| Screw Pad Height * | 4.75" – 6.625" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Floor to Overhead Switch | 12' 8" or 13' 2" |
| Ceiling Height Required | 14' 3" Minimum |
| ALI® Certified | Yes |
| Arm Reach (Min.) | 27.5” |
| Arm Reach (Max.) | 59” |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
