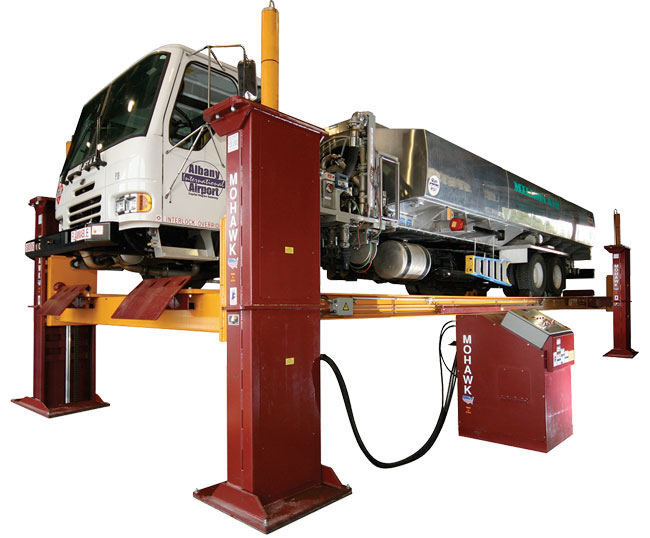

Mohawk TR-110 / TR-120 Four-Post Lift
Heavy-Duty Four-Post Service Lift
110,000 AND 120,000 LBS. CAPACITY
Contact for Pricing
Call For Availability
The Mohawk TR-110 and TR-120 four-post lifts deliver 110,000 to 120,000 pounds of lifting capacity with a full 6′ 6 ⅞" rise for complete under-vehicle access . Standard features include all-position mechanical safety locks and pivoting approach ramps for easy drive-on service. Each lift can be built to your exact requirements—longer, taller, wider, or with even greater capacity—and every TR-Series model is engineered, welded, and manufactured in the U.S.A. for unmatched strength and reliability.
110,000 and 120,000 lbs.
Capacity
5'
Rise Height
120 seconds approximately
Full Rise
20 HP 220 VAC, 3 Phase
Power
Overview
Mohawk’s above-ground four-post design lets technicians drive on and get to work without any wheelbase adjustments . The surface-mounted lift installs quickly and eliminates the environmental issues of in-ground systems , while its open, clear-floor layout gives toolboxes, tire dollies, and other shop equipment unobstructed movement beneath and around the vehicle for full undercarriage access.
Specifications
| Specification | TR-110 / TR-120 Four-Post Lift |
|---|---|
| Lifting Capacity | 110,000 and 120,000 lbs. |
| Lifting Height (stroke) | 5' |
| Lifting Speed | 120 seconds approximately |
| Overall Length | 34'–11 ¾" (with 25' runways) |
| Overall Width | 15'-9" (wider or narrower available) |
| Width Between Posts | 11'-2 3/4" (wider or narrower available) |
| Runway Height at Full Stroke | 6'-6 7/8" |
| Synchronization (side to side) | Hydraulic fluid displacement backed by twin opposing leaf chains |
| Synchronization (fore and aft) | Automatically controlled with electrical fluid track leveling system and hydraulic gear-type flow divider with solenoid controlled valving |
| Mechanical Safety Systems | Multi-position locks in each post starting at 6" |
| Hydraulic Safety Systems | Integral hydrostatic line blow off flow control devices & velocity fuses |
| Back-up Hydraulic Safety Systems | Pressure compensated flow controls & velocity fuses and manual pump and valving to allow lowering in a no power situation |
| Electrical Safety Systems | Cross-wired electronic system with out of level shut-off safety backup |
| Motor Rating | 20 HP 220 VAC, 3 Phase |
| Concrete Requirements | 4000 PSI concrete 6" thick floor or (4) 6'x6' footings 12" deep |
| Weight | 37,500 lbs. (with 30’ tracks) |
| Warranty | 3 year Mohawk exclusive lift warranty (see specific warranty details) |
| Track Width | 36" |
| Track Length | 30' standard (longer or shorter lengths available) |
| Lifting Mechanism | (4) Direct drive cylinders using no cables, chains or mechanical lifting screws |
| Push Button Electronic Console | NEMA Type 4 Waterproof enclosure |
| Controls | Solenoid operated |
| Automatic Wheel Chocks | Standard equipment front & rear |
| Work Area Around/Under Lift | Clear and unobstructed with no side obstruction |
Specifications published by the Mohawk factory and subject to change. Source: mohawklifts.com.
