Products / Scissor & Mid-Rise Lifts
Challenger

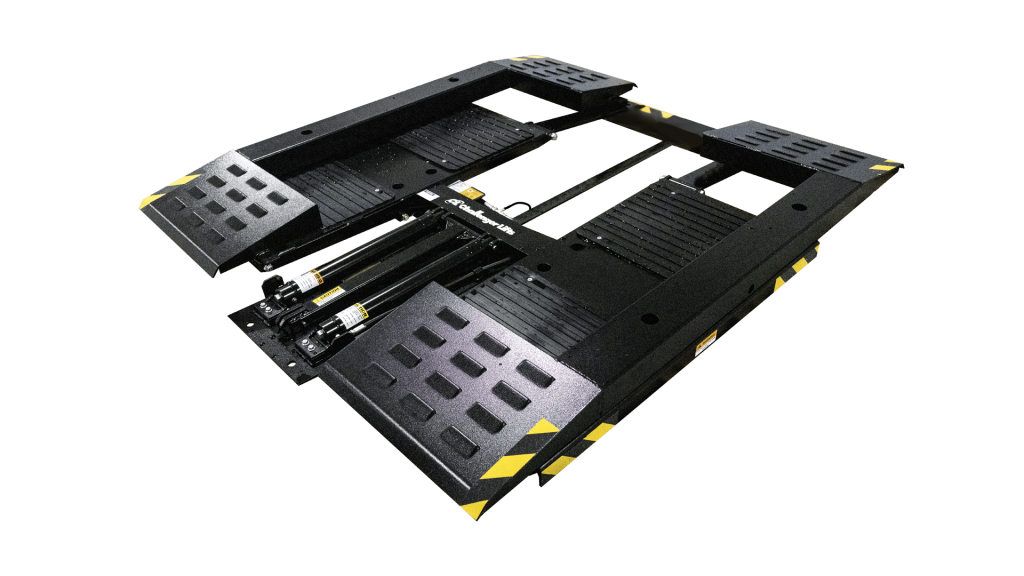

Challenger SRM10 Short-Rise Lift
10K Short-Rise Lift
10,000 LBS. CAPACITY
Contact for Pricing
Challengers SRM10 Short-Rise car lift boasts a remarkable 10,000 lb. capacity, allowing you to lift a wide range of vehicles efficiently. With a raised height of 22 inches, this lift is perfect for servicing trucks, SUVs, and other larger vehicles.
10,000 lbs.
Capacity
1HP, 115v, 60Hz, 1Ph
Power
Overview
This lift comes standard with two-position spotting blocks and reaches pickup points on a broader range of vehicles, making it a versatile addition to any auto repair shop or home garage. The three locking positions add to the ease of use when lifting and lowering your vehicle, ensuring a smooth and stable operation every time.
Features
- SRM10 Mobile Power Unit
- Standard two-position spotting blocks reach pickup points on a wider range of vehicles
- Three locking positions for ease of use
Specifications
| Specification | SRM10 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Raised Height | 22” |
| Lowered Height | 4.25” |
| Platform Overall Length | 50” |
| Ramp & Platform Overall Length | 82.5” |
| Overall Length | 92.875” |
| Overall Width | 85” (+ 2.5” for handle) |
| Locking Bar Heights | 13.75”, 18.325”, 21.25” |
| Motor / Voltage | 1HP, 115v, 60Hz, 1Ph |
| ALI/ETL Certified | Yes |
| Low Adapter Position | 4.75” |
| High Adapter Position | 6.75” |
| Outside Width of Platforms | 72” |
| Width between Platforms | 23” |
| Rearward Movement | 13.25” |
| Color Available | Black |
Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
