Products / Mobile Column Lifts

Challenger

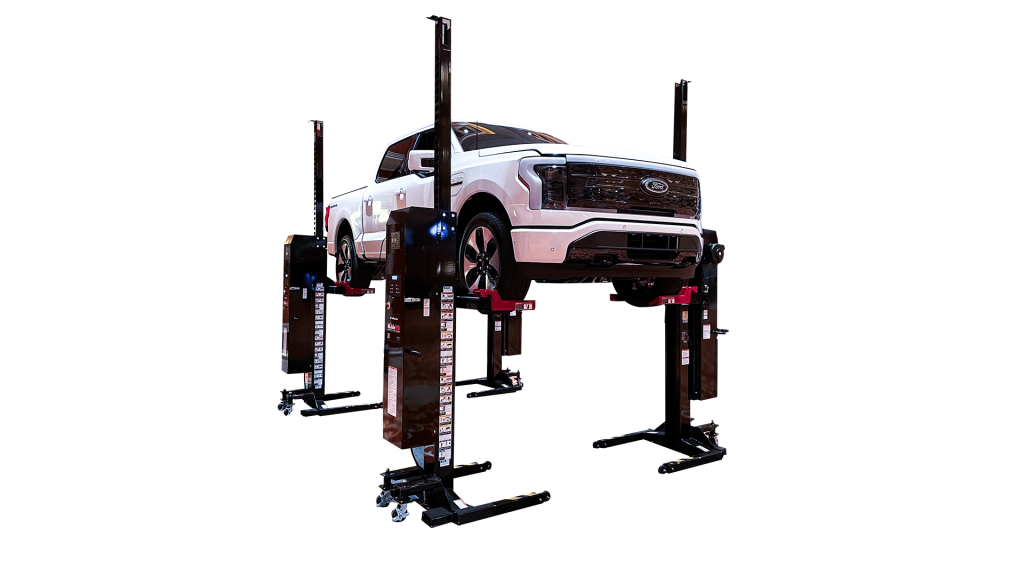

Challenger CLMM-5000 Mobile Column Lift

5K Medium-Duty Mobile Column Lift

5,000 LBS. CAPACITY

Contact for Pricing
Request a Quote → Download PDF

Experience unparalleled mobility and flexibility with Challenger's cutting-edge medium-duty mobile column lifting system. Revolutionize your workshop capabilities with this state-of-the-art system that enables you to lift any rubber-tired vehicle weighing up to 20,000 lbs. quickly and safely. The CLMM Series allows your shop to service many different vehicle types, from passenger cars and trucks to medium-duty commercial fleet vehicles.

5,000 lbs.
Capacity
60" per min.
Full Rise
24 VDC nominal
Power

Overview

The complete under-car clearance also makes these an excellent choice for Electric Vehicle service, allowing you to drop and install batteries or battery packs effortlessly.

Features

  • 20,000 lbs. lifting capacity
  • 110v charging system
  • Adjustable to fit wheel diameters from 6″ to 22″

Specifications

Specification CLMM-5000
Lifting Capacity Per Column 5,000 lbs.
Lift Speed (Max Load) 60" per min.
Length of Lift Unit 46.75"
Width of Lift Unit 38.5"
Height of Lift Unit 88.5"
Height of Lift Unit at Full Rise 157"
Operating Peak Power 4HP
Operating Voltage 24 VDC nominal
Charger Voltage Required 120-240 VAC @ 50-60 Hz
Charger Amps Required 2.8 Amps
Weight of Lift Unit 870 lbs
Maximum Lift Height (4 units) 69"
Maximum Lift Height (2 units – Normal Mode) 32"
Min-Max Wheel Diameter 6" – 22"
Max. Hydraulic System Operating Pressure 2,230 psi
Footprint of Lift Unit 450 sq. in.
Ground Pressure for each Lift (Max. Load) 13.04 psi
Turning Radius of Lift Unit 50.5"

Specifications published by the Challenger factory and subject to change. Source: challengerlifts.com.
